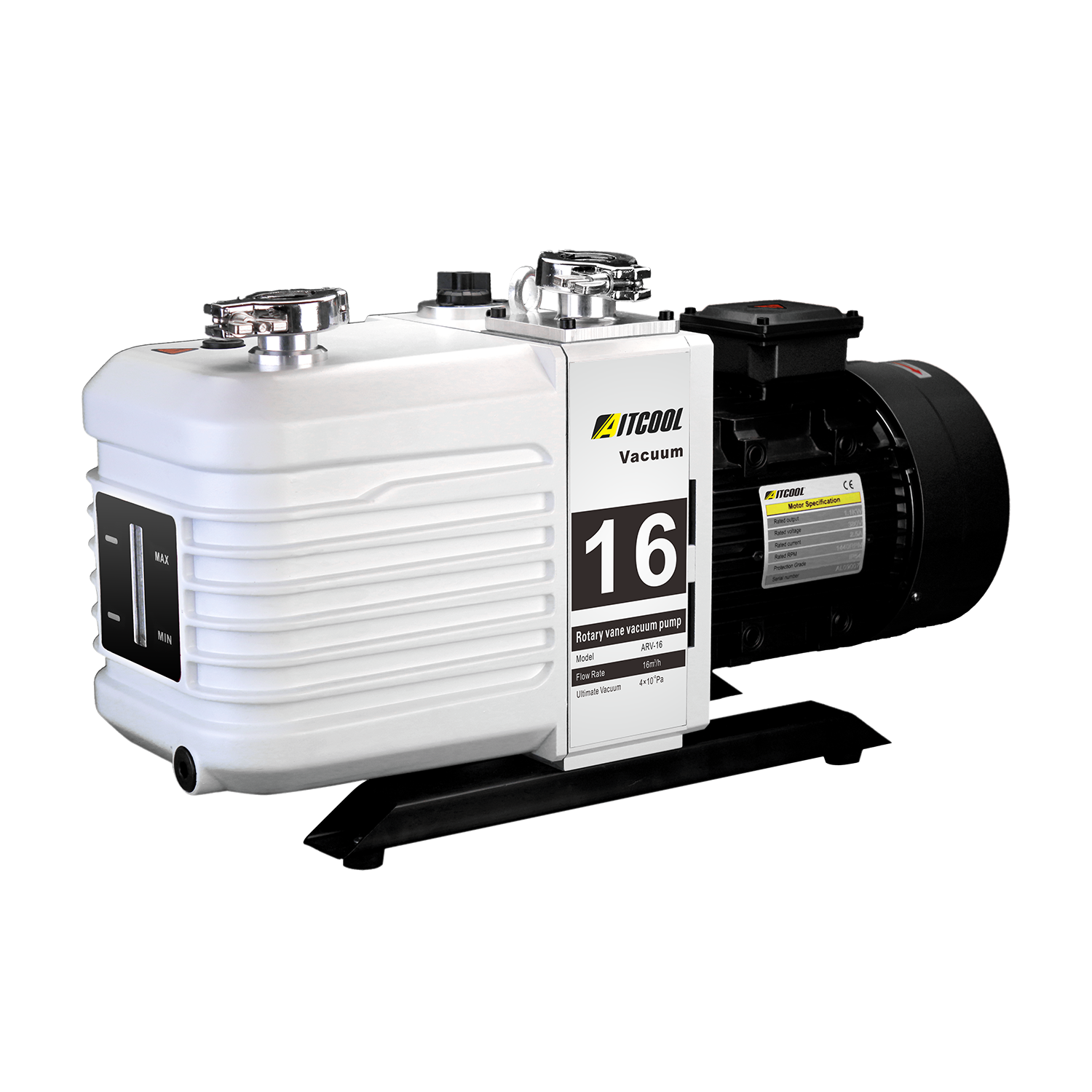

Serie ARV
Serie ARV

Serie ARV

Modelo:
ARV-4、ARV-8、ARV-16、ARV-24
Entrega:

Puerto de entrada y escape

ARV-16ARV-8PesoModelosARV-24
Flow Rate(m3/h)19kg4(1.1)8(2.2)16(4.4)24(6.7)
19kg4.8(1.3)9.6(2.7)19.2(5.3)28.8(8.0)
Ultimate partial Pressure gas ballast close4x10-2Pa4x10-2Pa4x10-2Pa4x10-2Pa
Ultimate total Pressure gas ballast close4x10-2Pa4x10-2Pa4x10-2Pa4x10-2Pa
Ultimate total Pressure gas ballast openPesoPesoPeso / 40Peso / 40
Power supplyFuente de alimentaciónFuente de alimentaciónFuente de alimentaciónFuente de alimentación
Rated PowerPotencia nominalPotencia nominalPotencia nominal0.75kw / 0.55kw
Inlet and Exhaust portPesoPesoPeso0.6-1.0L
Oil Capacity8x10-1Pa8x10-1Pa1.2-2.0L1.2-2.0L
Motor Speed(rpm)19kg1440144014401440
19kg1720172017201720
Operation Temp.ARV-24ARV-24ARV-24ARV-24
Noise Level(dB)PesoPesoPeso≤60
Dimensions (mm)520x192x295520x192x2951.10kw / 0.75kw1.10kw / 0.75kw
ARV-819kg21kg32kg19kg
ModelsARV-30ARV-50ARV-70ARV-90
Flow Rate(m3/h)50Hz30(8.3)50(13.9)70(19.4)90(25)
60Hz36(10)60(16.7)84(23.3)108(30)
Ultimate partial Pressure gas ballast close4x10-2Pa4x10-2Pa4x10-2Pa4x10-2Pa
Ultimate total Pressure gas ballast close4x10-1Pa4x10-1Pa4x10-1Pa4x10-1Pa
Ultimate total Pressure gas ballast open8x10-1Pa8x10-1Pa8x10-1Pa8x10-1Pa
Power supplysingle/3-phase3-phase3-phase3-phase
Rated Power1.10kw1.50kw2.20kw3.00kw
Inlet and Exhaust portKF25/40KF40KF40KF40
Oil Capacity1.2-2.0L3.0-4.5L3.0-4.5L3.0-4.5L
Motor Speed(rpm)50Hz1440144014401440
60Hz1720172017201720
Operation Temp.5-400C5-400C5-400C5-400C
Noise Level(dB)≤60≤62≤62≤65
Dimensions (mm)520x192x295720x240x390720x240x390780x260x460
Weight38kg60kg65kg80kg
