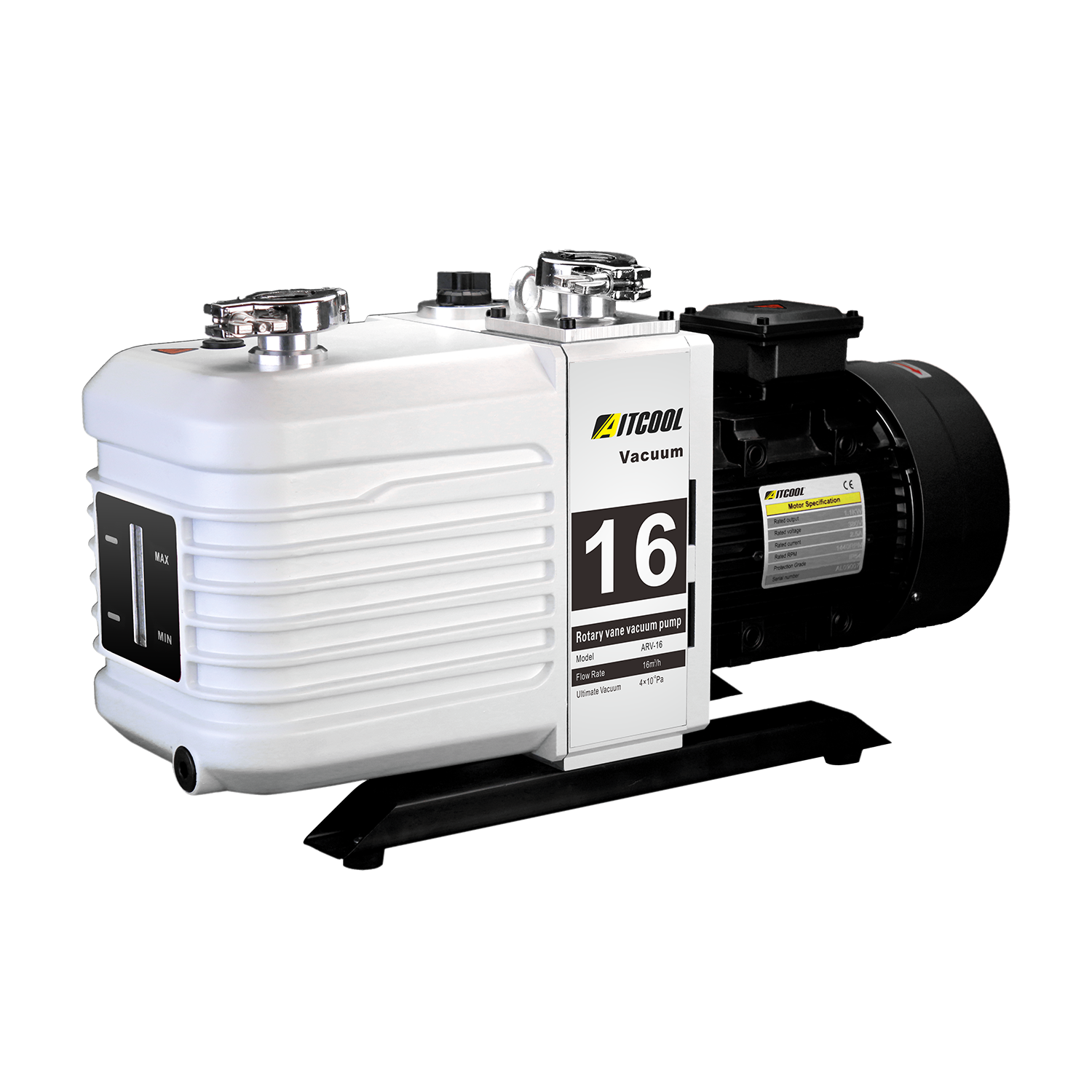

Dòng ARV
Dòng ARV

Dòng ARV

Model:
ARV-4、ARV-8、ARV-16、ARV-24
Chuyển:

Tốc độ dòng chảy (m3 / h)

5-400C≤58ARV-80,9-1,5L0,6-1,0L
Flow Rate(m3/h)10Pa4(1.1)8(2.2)16(4.4)24(6.7)
10Pa4.8(1.3)9.6(2.7)19.2(5.3)28.8(8.0)
Ultimate partial Pressure gas ballast close4x10-2Pa4x10-2Pa4x10-2Pa4x10-2Pa
Ultimate total Pressure gas ballast close10Pa / 4010Pa / 4010Pa / 4010Pa / 40
Ultimate total Pressure gas ballast open10Pa10Pa520x192x295520x192x295
Power supplyCông suất dầuCông suất dầuCông suất dầuCông suất dầu
Rated Power1,10kw / 0,75kw1,10kw / 0,75kw1,10kw / 0,75kwđơn / 3 pha
Inlet and Exhaust port10Pa10Pa10Pa1,2-2,0L
Oil Capacity4x10-1Pa4x10-1Pa0,6-1,0L8x10-1Pa
Motor Speed(rpm)10Pa1440144014401440
10Pa1720172017201720
Operation Temp.ARV-24ARV-24ARV-24ARV-24
Noise Level(dB)ARV-8ARV-8ARV-8ARV-8
Dimensions (mm)Cân nặngCân nặngđơn / 3 phađơn / 3 pha
5-400C10Pa10PaKF2510Pa
ModelsARV-30ARV-50ARV-70ARV-90
Flow Rate(m3/h)50Hz30(8.3)50(13.9)70(19.4)90(25)
60Hz36(10)60(16.7)84(23.3)108(30)
Ultimate partial Pressure gas ballast close4x10-2Pa4x10-2Pa4x10-2Pa4x10-2Pa
Ultimate total Pressure gas ballast close4x10-1Pa4x10-1Pa4x10-1Pa4x10-1Pa
Ultimate total Pressure gas ballast open8x10-1Pa8x10-1Pa8x10-1Pa8x10-1Pa
Power supplysingle/3-phase3-phase3-phase3-phase
Rated Power1.10kw1.50kw2.20kw3.00kw
Inlet and Exhaust portKF25/40KF40KF40KF40
Oil Capacity1.2-2.0L3.0-4.5L3.0-4.5L3.0-4.5L
Motor Speed(rpm)50Hz1440144014401440
60Hz1720172017201720
Operation Temp.5-400C5-400C5-400C5-400C
Noise Level(dB)≤60≤62≤62≤65
Dimensions (mm)520x192x295720x240x390720x240x390780x260x460
Weight38kg60kg65kg80kg
