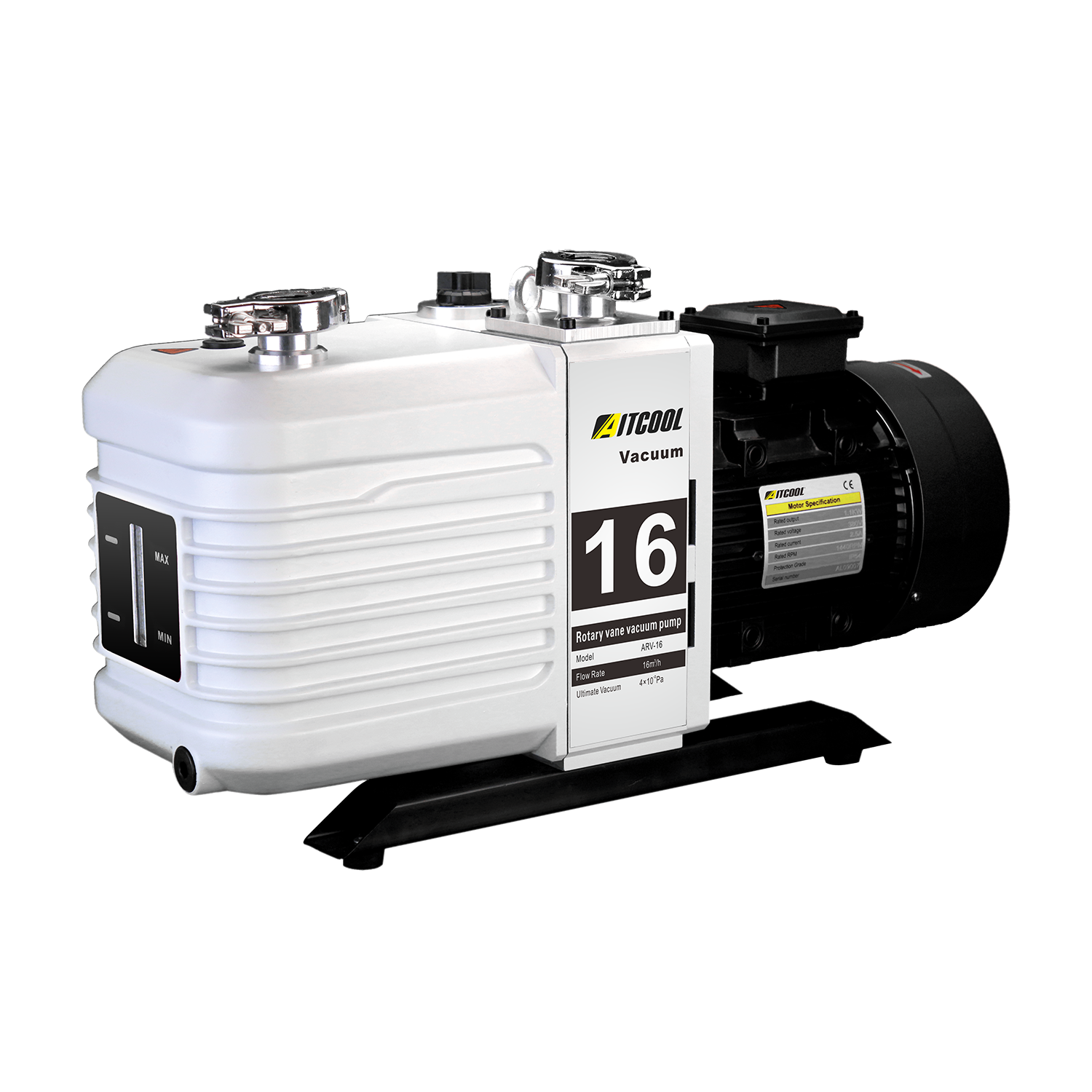

ARV Series

Quantity:

Technical Parameter

Models		ARV-4	ARV-8	ARV-16	ARV-24
Flow Rate(m3/h)	50Hz	4(1.1)	8(2.2)	16(4.4)	24(6.7)
Flow Rate(m3/h)	60Hz	4.8(1.3)	9.6(2.7)	19.2(5.3)	28.8(8.0)
Ultimate partial Pressure gas ballast close		4x10-2Pa	4x10-2Pa	4x10-2Pa	4x10-2Pa
Ultimate total Pressure gas ballast close		4x10-1Pa	4x10-1Pa	4x10-1Pa	4x10-1Pa
Ultimate total Pressure gas ballast open		10Pa	10Pa	8x10-1Pa	8x10-1Pa
Power supply		single/3-phase	single/3-phase	single/3-phase	single/3-phase
Rated Power		0.75kw/0.55kw	0.75kw/0.55kw	0.75kw/0.55kw	1.10kw/0.75kw
Inlet and Exhaust port		KF25	KF25	KF25	KF25/40
Oil Capacity		0.6-1.0L	0.6-1.0L	0.9-1.5L	1.2-2.0L
Motor Speed(rpm)	50Hz	1440	1440	1440	1440
Motor Speed(rpm)	60Hz	1720	1720	1720	1720
Operation Temp.		5-400C	5-400C	5-400C	5-400C
Noise Level(dB)		≤56	≤56	≤58	≤60
Dimensions (mm)		460x140x260	460x140x260	520x192x295	520x192x295
Weight		19kg	21kg	32kg	35kg

Models		ARV-30	ARV-50	ARV-70	ARV-90
Flow Rate(m3/h)	50Hz	30(8.3)	50(13.9)	70(19.4)	90(25)
Flow Rate(m3/h)	60Hz	36(10)	60(16.7)	84(23.3)	108(30)
Ultimate partial Pressure gas ballast close		4x10-2Pa	4x10-2Pa	4x10-2Pa	4x10-2Pa
Ultimate total Pressure gas ballast close		4x10-1Pa	4x10-1Pa	4x10-1Pa	4x10-1Pa
Ultimate total Pressure gas ballast open		8x10-1Pa	8x10-1Pa	8x10-1Pa	8x10-1Pa
Power supply		single/3-phase	3-phase	3-phase	3-phase
Rated Power		1.10kw	1.50kw	2.20kw	3.00kw
Inlet and Exhaust port		KF25/40	KF40	KF40	KF40
Oil Capacity		1.2-2.0L	3.0-4.5L	3.0-4.5L	3.0-4.5L
Motor Speed(rpm)	50Hz	1440	1440	1440	1440
Motor Speed(rpm)	60Hz	1720	1720	1720	1720
Operation Temp.		5-400C	5-400C	5-400C	5-400C
Noise Level(dB)		≤60	≤62	≤62	≤65
Dimensions (mm)		520x192x295	720x240x390	720x240x390	780x260x460
Weight		38kg	60kg	65kg	80kg
