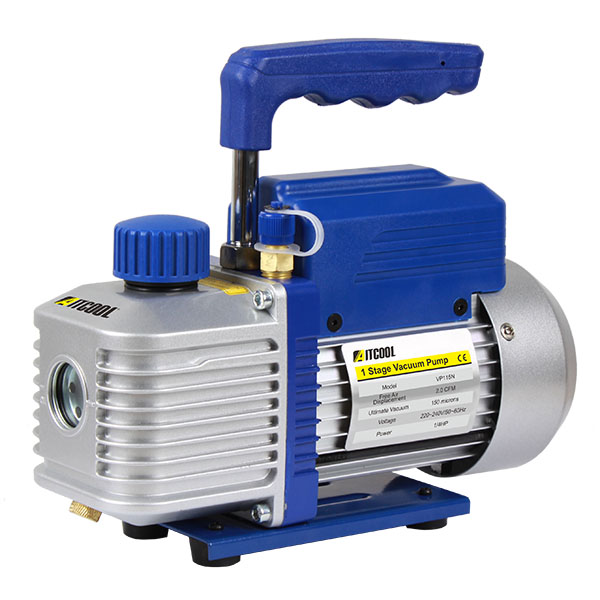

VP N Series

Model NO.: VP215N、VP230N、VP250N、VP270N、VP290N、VP2200N

Quantity:

Product Description
Application Description

Technical Parameter

Models		VP215N	VP230N	VP250N	VP270N	VP290N	VP2200N
Flow Rate	50Hz	1.8CFM	2.5CFM	4.5CFM	6.0CFM	8.0CFM	10CFM
	50Hz	51L/MIN	71L/MIN	128L/MIN	170L/MIN	227L/MIN	283L/MIN
	60Hz	2.0CFM	3.0CFM	5.0CFM	7.0CFM	9.0CFM	12CFM
	60Hz	57L/MIN	85L/MIN	142L/MIN	198L/MIN	255L/MIN	340L/MIN
Ultimate Vacuum	Partial Pressure	2x10-1Pa	2x10-1Pa	2x10-1Pa	2x10-1Pa	2x10-1Pa	2x10-1Pa
Ultimate Vacuum	Total pressure	15Microns	15Microns	15Microns	15Microns	15Microns	15Microns
Power		1/4HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Inlet Port		1/4"SAE	1/4"&3/8"SAE	1/4"&3/8"SAE	1/4"&3/8"SAE	1/4"&3/8"SAE	1/4"&3/8"SAE
Oil Capacity		230ml	300ml	350ml	450ml	630ml	630ml
Dimensions（mm)		240x93x200	280x115x230	320x125x232	340x132x245	390x145x252	390x145x252
Weight		4.3kg	7.8kg	8.6kg	12.5kg	15.5kg	16kg
